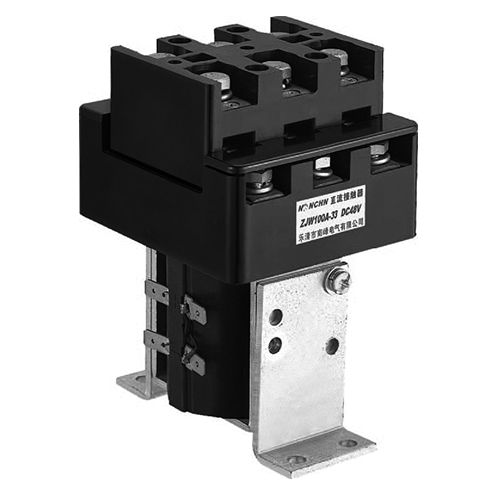

product description
Application
The product is mainly used in the EPS power supply of the communication base station, and the contacts can also be used for AC loads of 380V, 220V and 110V. The product coil is DC powered,
Ordering Notice
- For example: ZJW200-33S/12V
- The DC contactor of main contact is 3NO+3NC, with micro switch, vertical installation, rated voltage not more than DC80V, current 200A, coil voltage is
Electric Parameters
| Contact type | 3NO+3NC of bridge type | Instantaneous maxi (closing) current | 7Ie,≤1s |
| Rated voltage of contacts (DC) | DC: 80V; AC: 380V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | DC: 200; AC: 60 | Dielectric withstand voltage | 2500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80(at 100A) | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 6~220V | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤24 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤70%Ue | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
Application
The product is mainly used in the EPS power supply of the communication base station, and the contacts can also be used for AC loads of 380V, 220V and 110V. The product coil is DC powered,
Ordering Notice
- For example: ZJW200-03S/12V
- The DC contactor of main contact is 3NC, with micro switch, vertical installation, rated voltage not more than DC80V, current 200A, coil voltage is
Electric Parameters
| Contact type | 3NC of bridge type | Instantaneous maxi (closing) current | 7Ie,≤1s |
| Rated voltage of contacts (DC) | DC: 80V; AC: 380V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | DC: 200; AC: 60 | Dielectric withstand voltage | 2500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80(at 100A) | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 6~220V | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤18 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤70%Ue | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
