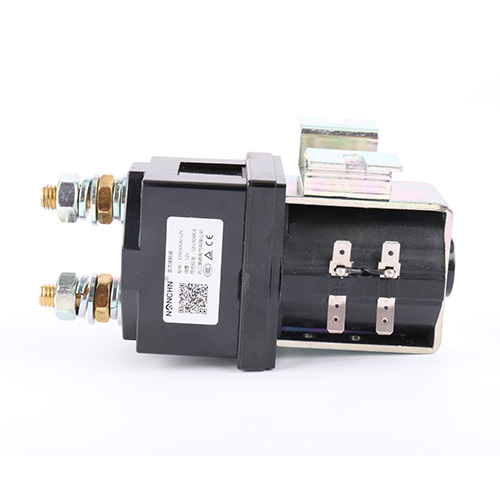

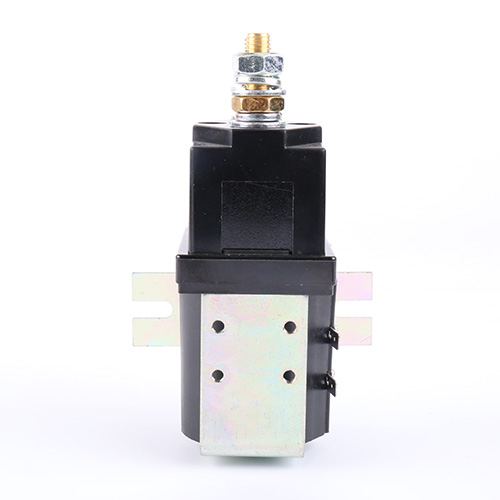

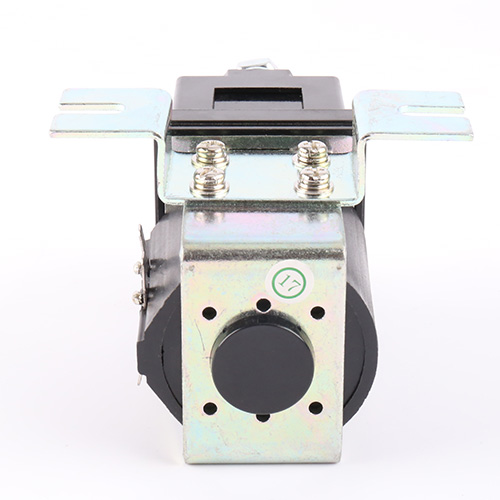

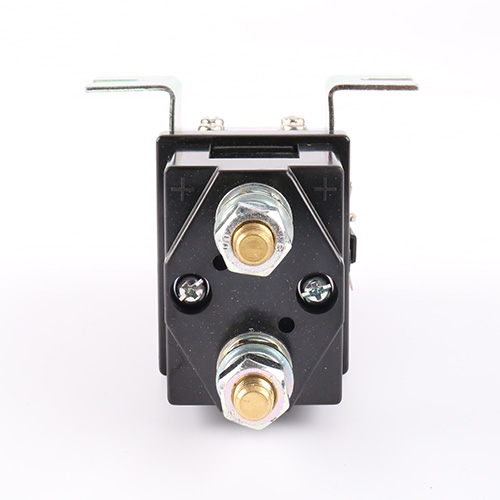

Latching DC Contactor is compact in design, has fast response and reliable holding characteristics, and can achieve low power consumption and high efficiency control.
InquiryApplication
Latching DC Contactor is compact in design, has fast response and reliable holding characteristics, and can achieve low power consumption and high efficiency control.
Latching DC contactors are mainly used to control switching on/off of power supply of storage battery car, electric forklift, electric winch, electric car, excavator, air conditioner in vehicle.
Latching DC contactors are widely used in new energy vehicles, power tools, solar photovoltaic systems, battery management systems, industrial automation and other fields.
Ordering Notice

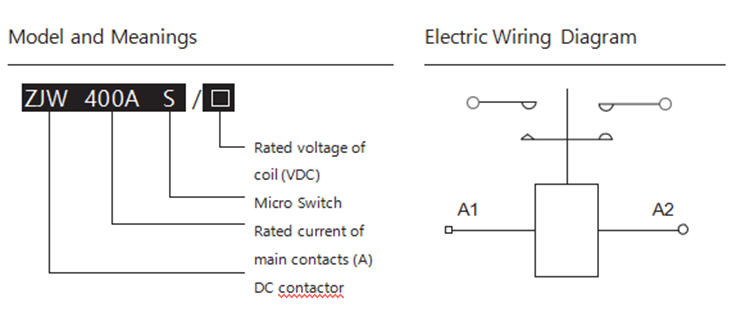

For example: ZJW400A/12V
The DC contactor of main contact is one NO, rated voltage not more than DC 80V, current 400A, coil
Basic Technical Parameters (at normal conditions) | |||
Electric Parameters | |||
Contact type | One pair of bridge type moving open (NO) contacts |
Instantaneous maxi (closing) current | 7Ie,≤1s |
Rated voltage of contacts (DC) | ≤80V | Insulation resistance(MΩ) | ≥100 |
Rated current of contacts (A) | 400 | Dielectric withstand voltage | 1500V,p.f. 1min, no breakdown |
Voltage drop on contacts(mV) | ≤80 | Electric cycles (104) | ≥2 |
Coil voltage specification(DC) | 12V, 24V, 48V, 72V etc | Mechanical cycles (104) | ≥30 |
DC power consumption of coil (W) | ≤16 | Temperature rise on outgoing terminal | ≤65 |
Pickup voltage(DC) | ≤75%Us | Temperature rise of coil(K) | ≤85 |
Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
Release time(ms) | ≤50 | Working duty | Continuous operating duty |
Mechanical/Ambient Conditions | |||
Torque of outgoing terminal on contact M10(N.m) |
≯18.0 N appropriate | Protection grade | IP50 |
Coil lead end thickness(mm) | 0.8 | Mounting methods | Freely |
Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |
Conversion Table for Coil Specification(20°C) | |||
Voltage(V) | Coil resistance(1±10%)Ω | Voltage(V) | Coil resistance(1±10%)Ω |
12 | 17.1 | 60 | 442 |
24 | 67.7 | 72 | 568.6 |
48 | 210.4 | 80 | 737 |

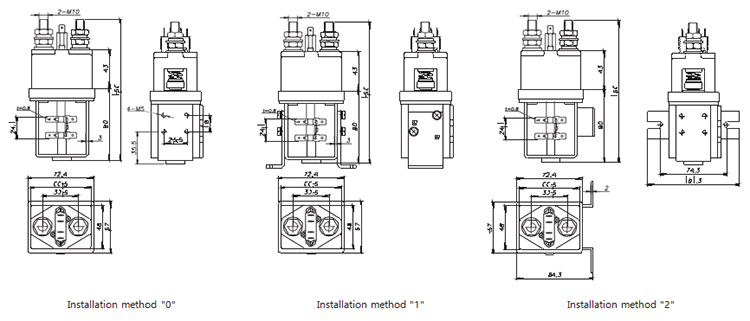

Outline and Mounting Picture
Basic size(mm) | Tolerance size(mm) |
0~30 | ±0.2 |
30~60 | ±0.3 |
60~100 | ±0.5 |
>100 | ±1.0 |
Note: When using the installation mode “0”, please specify the length of the M5 screw in the contract. The default length is M5×8.
