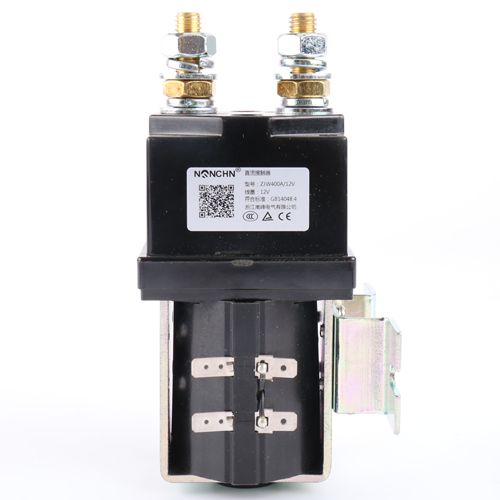

The manufacturer directly sells electric forklift contactors, The DC contactor of the main contact is one NO, rated voltage not more than DC 80V, current 600A.
Application
Manufacturer directly sells 600a/12V DC contactor for electric vehicles, which has 1 normally open contact and controls the power on and off of electric vehicles, telecommunications equipment, construction machinery, and excavators.
Ordering Notice
For example: ZJW600A/12V
The DC contactor of main contact is one NO, rated voltage not more than DC 80V, current 600A, coil
| Basic Technical Parameters (at normal conditions) | |||
| Electric Parameters | |||
| Contact type | One pair of bridge type moving open (NO) contacts |
Instantaneous maxi (closing) current | 7Ie,≤1s |
| Rated voltage of contacts (DC) | ≤80V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | 600 | Dielectric withstand voltage | 1500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80 | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 12V, 24V, 48V, 72V etc | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤16 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤75%Us | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
| Mechanical/Ambient Conditions | |||
| Torque of outgoing terminal on contact M8(N.m) |
≯10.5 N appropriate | Protection grade | IP50 |
| Coil lead end thickness(mm) | 0.8 | Mounting methods | Freely |
| Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |
| Conversion Table for Coil Specification(20°C) | |||
| Voltage(V) | Coil resistance(1±10%)Ω | Voltage(V) | Coil resistance(1±10%)Ω |
| 12 | 17.1 | 60 | 442 |
| 24 | 67.7 | 72 | 568.6 |
| 48 | 210.4 | 80 | 737 |
Outline and Mounting Picture
| Basic size(mm) | Tolerance size(mm) |
| 0~30 | ±0.2 |
| 30~60 | ±0.3 |
| 60~100 | ±0.5 |
| >100 | ±1.0 |
