The product is mainly used in the EPS power supply of the communication base station, and the contacts can also be used for AC loads of 380V, 220V and 110V.
Application
ZJW200-03 dc power contactor can only switch in one direction of current. Its operation is relatively stable and reliable. It has a high rated voltage and current and is suitable for the control of high-power loads.
Ordering Notice
For example: ZJW200-03S/12V
The DC contactor of main contact is 3NC, with micro switch, vertical installation, rated voltage not more than DC80V, current 200A, coil voltage is
| Basic Technical Parameters (at normal conditions) | |||
| Electric Parameters | |||
| Contact type | 3NC of bridge type | Instantaneous maxi (closing) current | 7Ie,≤1s |
| Rated voltage of contacts (DC) | DC: 80V; AC: 380V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | DC: 200; AC: 60 | Dielectric withstand voltage | 2500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80(at 100A) | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 6~220V | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤18 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤70%Ue | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
| Magnetic Retention Structure Supplementary Parameter | |||
| Contact initial state | NO | Control power supply characteristics | Positive and reverse pulse power supply |
| Contact action characteristics | Coil plus positive pulse contact closure | Power pulse time | 200ms≤t≤1s |
| Coil plus reverse pulse contact disconnect | Pickup voltage(DC) | ≤75%Ue | |
| Instantaneous power consumption of the coil |
≤48.0(W) | Release voltage(DC) | ≤75%Ue |
| Mechanical/Ambient Conditions | |||
| Torque of outgoing terminal on contact M8(N.m) |
≯8.5N appropriate | Protection grade | IP50 |
| Coil wiring insert(mm) | 0.8 | Mounting methods | Freely |
| Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |

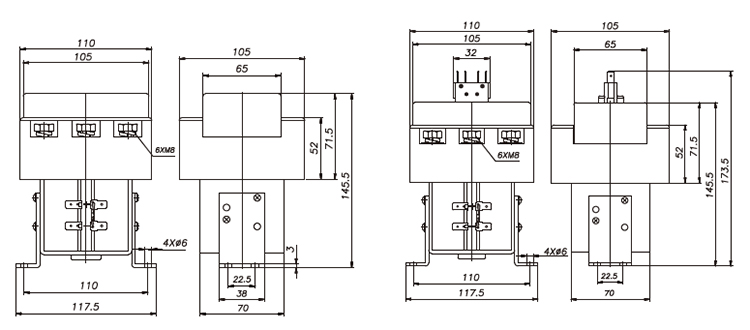

Outline and Mounting Picture
| Basic size (mm) | Tolerance size (mm) |
| 0～30 | ±0.2 |
| 30～60 | ±0.3 |
| 60～100 | ±0.5 |
| ＞100 | ±0.1 |
